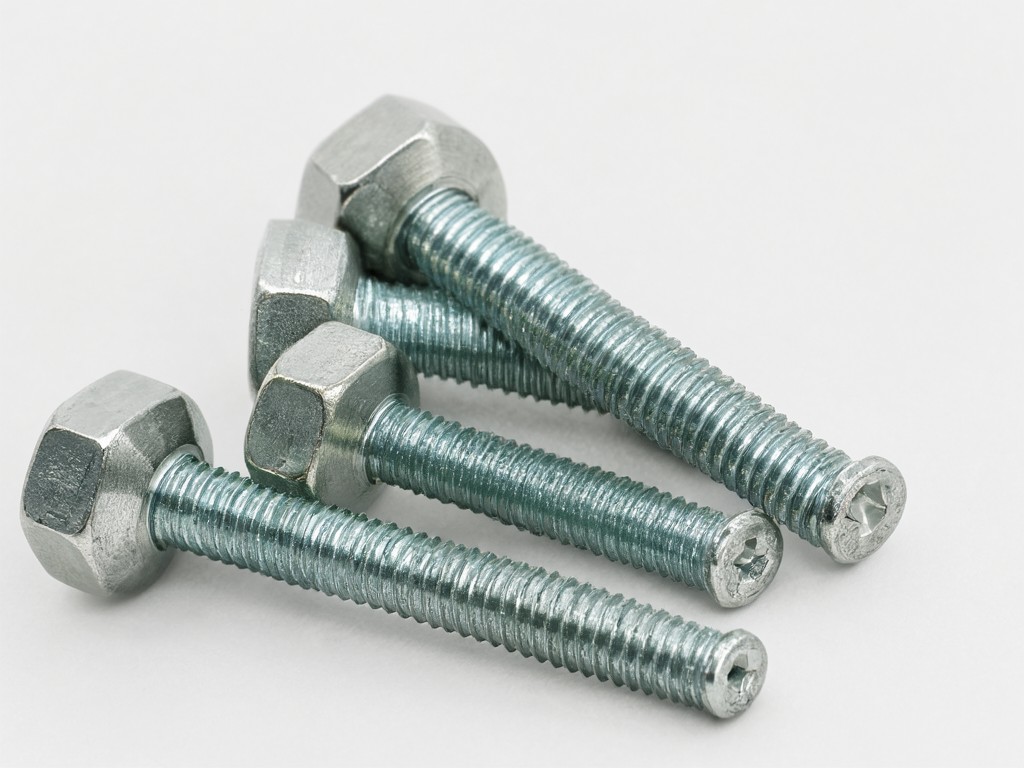

Customized 1 2 13 countersunk hex bolt Maker: Specification, Ordering and Quality Notes
For importers and distributors, a countersunk bolt is a fit-and-repeatability decision as much as a fastener purchase. A 1/2-13 thread callout identifies nominal diameter and pitch, but the head angle, socket, length reference, material, finish and thread class still need to be fixed before production.
Buying Mistakes That Lead to Returns
| Specification point | Common assumption | What to confirm before ordering |
|---|---|---|
| 1/2-13 thread | The thread callout defines the complete bolt. | Specify thread series, class, usable thread length and any unthreaded shank length. |
| Countersunk head | All countersinks seat at the same angle and depth. | Call out head angle, head diameter and head height from the mating part or drawing. |
| Hex drive | A matching nominal socket size guarantees installation fit. | Confirm socket width across flats, depth and corner form against the intended tool. |
| Bolt length | Length is measured the same way for every head style. | For a countersunk head, state whether the length runs from the top of the head to the tip, and check it against the assembly stack. |
Balance and load analysis shows why head seating matters: a head that sits proud changes the contact surface, while a mismatched angle can concentrate pressure at the rim. Either condition can produce a loose-feeling assembly, damaged mating material or installer complaints even when the thread engages.
Do not treat 1/2-13 as a complete specification. The drawing or approved sample must settle the fit details before a production quantity is priced.
What Can Be Customised and What Cannot
A drawing can define the head geometry, drive recess, length, shank, thread runout and finish. The 1/2-13 thread pitch itself is not a discretionary feature once it is specified; changing it changes mating compatibility and requires a separate part number.
| Production route | Useful when | Cost and process trade-off |
|---|---|---|
| Cold-formed head with rolled thread | Repeat orders use a stable geometry and forecast volume can absorb dedicated tooling. | Tooling adds setup cost; at sufficient volume, the amortised tooling charge can reduce the conversion cost per piece and support faster repeat runs. |
| Machined or partly machined features | Low initial quantities, unusual geometry or a design that is still under approval. | Less dedicated forming tooling may be needed, but machining time can keep the unit price higher at repeat volumes. |
For repeat orders, approve the complete drawing before tooling release. A later change to head angle, socket depth or thread length can make existing tooling unusable and restart sample approval.
Finish, marking and material can also be specified, subject to the chosen production route. Coating thickness affects thread fit and socket edges, so confirm the finished-part fit requirement rather than reviewing the uncoated blank alone.
Who Uses It and Where It Matters
Consistency depends on the mating part, the tool and the installation method, not just the bolt itself. A countersunk head suits assemblies that need a flush or low-profile fastener, provided the receiving seat matches its angle and diameter.
- Equipment assemblers choose the format where exposed head height can interfere with a moving component or adjacent surface; seat depth and head angle must match the machined or formed recess.
- Maintenance distributors stock specified replacement bolts for machinery and fixtures; correct thread class and length reduce field substitutions and return risk.
- Importers supplying OEM assembly lines need repeatable socket engagement and head seating across lots, since poor tool fit slows installation and can damage the recess.
The installed feel is set by clean drive engagement and even seating. If the countersink is shallow or off-angle, added tightening force will not correct the interface; it can instead mark the seat or damage the drive.
Working as a Production Partner, Not a Catalogue Supplier
A catalogue part can cover standard dimensions, but an OEM order needs a controlled drawing, a defined revision and an agreed sample. That control matters when the bolt is sold into a repeat assembly rather than as an interchangeable shelf item.
Catalogue Supply
Works where the standard head, drive and thread already match the application. Initial cost is simpler, but buyers have fewer options when seat geometry or traceability requirements differ.
OEM Production Partnership
Supports drawing-based dimensions, approved samples and planned repeat runs. Tooling cost is visible up front; higher committed volume spreads that cost across more pieces and can lower cost per unit sold.
For distributors, the decision is a balance between minimum order quantity, inventory exposure and reorder speed. A larger run may reduce piece price, but only if demand can absorb the stock before a drawing revision or finish change makes it obsolete.
How Consistency Is Held Across Batches
Batch control starts with an approved specification and process route. Production checks should match the failure risks of the part rather than rely on visual inspection alone.
Typical checks include thread gauges for the specified thread class, dimensional measurement of length and head geometry, and inspection of socket width and depth. A mating gauge or sample assembly can verify countersink seating where the drawing requires a flush interface. Coating and finish checks should also account for their effect on thread engagement. Torque or load testing belongs in the control plan when the application and acceptance criteria call for it; no capacity should be inferred from the thread size alone.
Keep the approved drawing revision, sample disposition and batch inspection record linked to each purchase order. That record gives the next reorder a fixed reference instead of relying on a verbal description or an old sample with unknown revision status.
Care, Storage and Service Life
Service life depends on the installation load, exposure and condition of the mating parts. Match the material and finish to the actual environment, and avoid assuming that a coating intended for indoor use will protect the bolt in persistent moisture or chemical exposure.
- Store bolts dry and segregated by size, finish and lot. Mixed bins invite incorrect picks and surface damage.
- Protect the threads and socket recess from impact during handling; damaged crests or rounded drive corners can prevent correct assembly.
- Use the specified driver and installation procedure. Do not compensate for a poor countersink fit by applying extra torque.
- For service replacements, confirm the original thread, length and head geometry before fitting; visually similar fasteners may not seat or engage correctly.
Inspect returned parts for the failure location: corrosion, thread damage, drive rounding and uneven head contact point to different causes and should not be treated as one general quality issue.
Ordering, Tooling and Lead-Time Questions
What drawing details are needed to quote a 1/2-13 countersunk hex bolt?
Provide the thread series and class, head angle and dimensions, socket size and depth, overall length reference, material, finish, quantity and any inspection requirements. A marked-up drawing or approved physical sample helps resolve details that a short description leaves open.
How does order volume affect tooling cost and lead time?
A low-volume or sample run may use a route with less dedicated tooling but a higher piece cost. A production run can justify forming tools and spread their cost over more units; tool manufacture and approval can add time before the first run, while stable repeat orders can shorten planning because the setup and inspection references are already established. Confirm MOQ, tooling charges, sample timing and production timing together.
Can a sample be used to approve production?
Yes, if approval records the controlling drawing revision and checks the features that govern fit: thread, head seat, socket engagement, length and finish. Approval of an unmeasured sample alone may not define the acceptance limits for later batches.
What changes require a new tooling or cost review?
Changes to head profile, socket geometry, shank or thread length may require tool changes or a different process route. A finish change can also affect fit and inspection requirements. Review revisions before release so existing stock and production tooling are not assumed compatible.
Request a Tooling Review
Send the drawing, expected annual volume and first-order quantity for a review of the production route, tooling amortisation and sample plan. This makes the quoted unit cost useful for resale planning, not just the initial purchase.
Discuss your bolt specification and tooling plan
